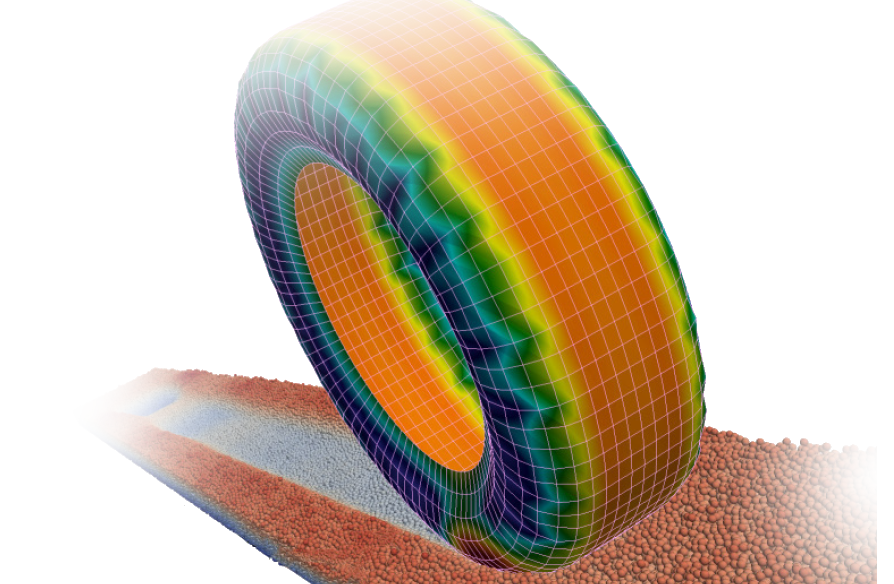

The FEA (Finite Element Analysis)design fullyoptimizes the tire structure, effectively reduces therolling resistance and saves fuel consumption.

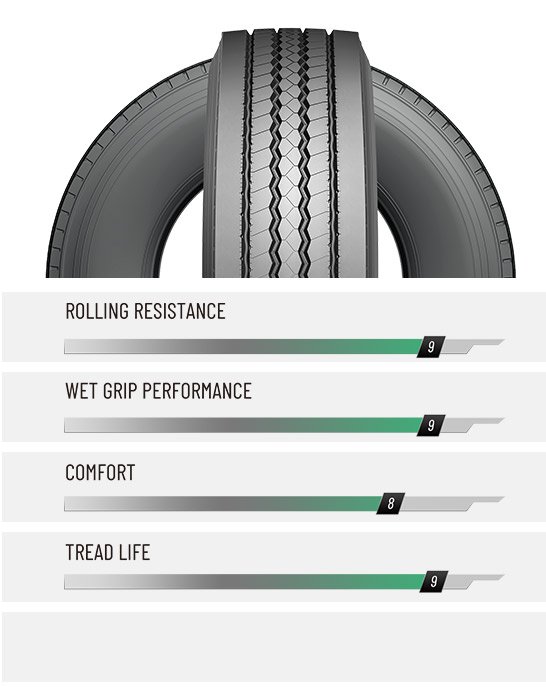

Three main zigzag grooves and a semi-open shoulder design ensure the tire's running performance andhandling performance in complex road conditions.

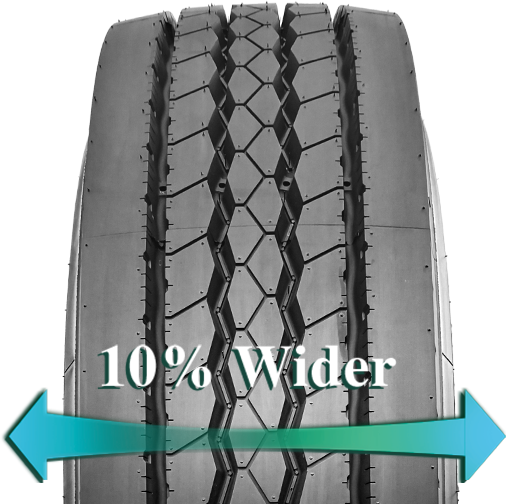

Super wide tread width and deep grooves offersmooth drive and safe arrival.
| INCH | SIZE | PR/LR | LOAD INDEX/SPEED CODE | STANDARD RIM | OVERALL DIA | SECTION WIDTH | LOAD | PRESSURE | O.T.D | TT/TL |
| 17.5 | 215/75R17.5 | 16 / H | 135/133 L | 6.00 | 767 / 30.2 | 211 / 8.3 | 2180/2060 | 850 / 123 | 13 / 16.4 | TL |
| 17.5 | 235/75R17.5 | 18 / J | 143/141 L | 6.75 | 797 / 31.4 | 233 / 9.2 | 2725/2575 | 875 / 127 | 13 / 16.4 | TL |
| 17.5 | 245/70R17.5 | 18 / J | 143/141 K | 7.50 | 789 / 31.1 | 248 / 9.8 | 2725/2575 | 900 / 130 | 13 / 16.4 | TL |
| 19.5 | 245/70R19.5 | 18 / J | 141/140 M | 7.50 | 839 / 33.0 | 248 / 9.8 | 2575/2500 | 850 / 123 | 14.5 / 18.3 | TL |
| 22.5 | 255/70R22.5 | 16 / H | 140/137 M | 7.50 | 930 / 36.6 | 255 / 10.0 | 2500/2300 | 825 / 120 | 14.5 / 18.3 | TL |
| 22.5 | 315/80R22.5 | 22 / M | 161/157 K | 9.00 | 1076 / 42.4 | 312 / 12.3 | 4625/4125 | 900 / 130 | 16 / 20.2 | TL |
| 22.5 | 315/80R22.5 | 18 / J | 156/150 K | 9.00 | 1076 / 42.4 | 312 / 12.3 | 4000/3350 | 850 / 123 | 16 / 20.2 | TL |
